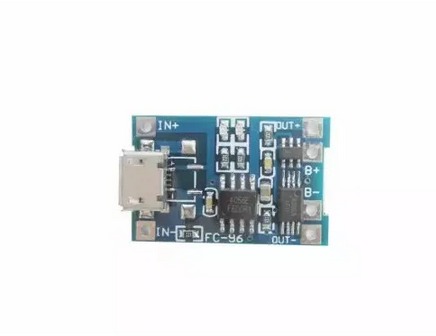

TP4056 18650 1A Battery Charger with Protection

Description: The TP4056 18650 1A LiPo Battery Charger with Protection Module is a compact and efficient charging solution for 18650 Lithium-ion and LiPo batteries. It includes both charging and protection functions, ensuring safe and reliable operation. This module is ideal for battery-powered devices and projects requiring a reliable charging solution with built-in safety features. Key Features:

• TP4056 charging IC for efficient and accurate charging
• 1A charging current for fast charging of 18650 LiPo batteries
• Protection features for overcharge, over-discharge, and short-circuit
• LED indicators for charging status
• Compact design for easy integration into various projects

Technical Specifications:

• Charging Current: 1A
• Input Voltage: 5V (via micro USB or direct input)
• Battery Type: 18650 Lithium-ion or LiPo
• Charging Voltage: 4.2V ± 1%
• Protection Features: Overcharge, over-discharge, short-circuit
• Operating Temperature Range: -10°C to +85°C
• Dimensions: 42mm x 15mm x 5mm

Applications:

• Battery-powered electronic devices
• Portable gadgets
• DIY electronics projects
• Solar-powered systems
• Remote monitoring systems

Datasheet: For detailed technical information, refer to the TP4056 18650 1A LiPo Battery Charger with Protection Module Datasheet.
