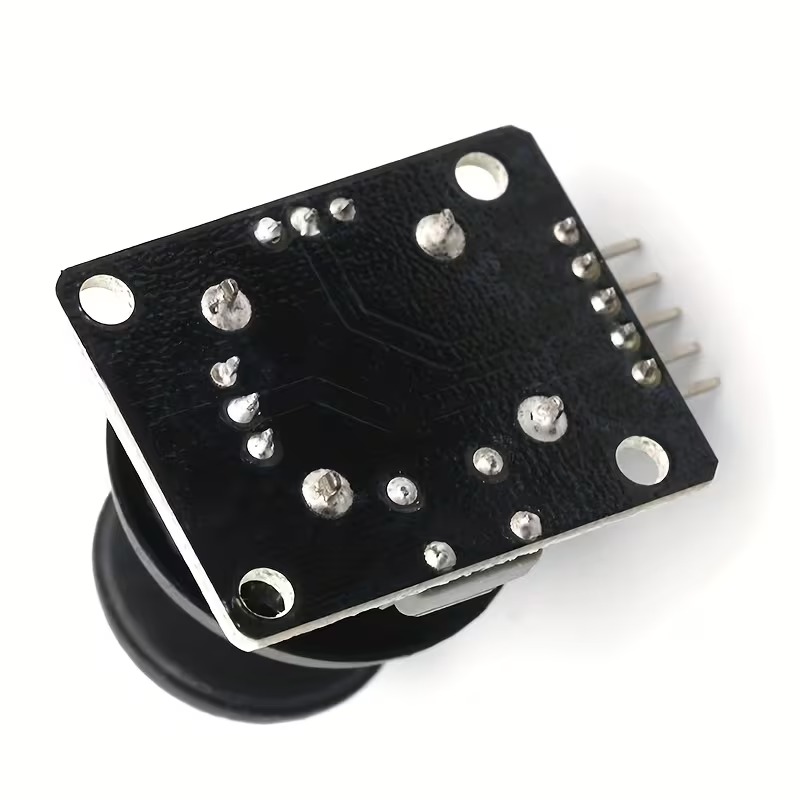

Joystick Module

A joystick is an input device used to control movements or selections in electronic systems, such as video games, robotics, and computer applications. It consists of a stick that can be moved in various directions and is often equipped with buttons or switches to provide additional input options. Key Features:

• Typically includes two axes (X and Y) for directional control
• May include a Z-axis or additional rotary controls
• Often features built-in push-button switches
• Analog output for variable input
• Compact and easy to integrate into various devices and systems

Technical Specifications:

• Axis Control: X-axis, Y-axis (and sometimes Z-axis)
• Output Type: Analog (typically provides a variable voltage output corresponding to the stick's position)
• Range: Typically 0-5V or 0-3.3V
• Switches: Often includes one or more push-button switches
• Connector: Varies (e.g., 3-pin, 4-pin, or a connector compatible with the system it interfaces with)
• Dimensions: Varies based on the model (usually compact and suitable for mounting on a panel or enclosure)
• Operating Voltage: Typically 3.3V to 5V

Applications:

• Video game controllers
• Robotics and automation systems
• Computer input devices
• Remote control systems
• Navigation and control systems

Usage:

1. Connection: Connect the joystick to the appropriate interface on your system. This may involve wiring analog outputs to an ADC (Analog-to-Digital Converter) or connecting to a dedicated joystick interface.
2. Calibration: Calibrate the joystick to ensure accurate readings of its position and button states.
3. Integration: Use the joystick input to control or navigate in your application. The X and Y axis outputs correspond to the position of the stick, and button presses can be used for additional control inputs.

Caution:

• Handle the joystick carefully to avoid physical damage.
• Ensure correct wiring and connections to avoid electrical issues.
• Follow the manufacturer's guidelines for calibration and use.

Datasheet: For detailed technical specifications, refer to the specific datasheet or user manual provided by the joystick manufacturer.
