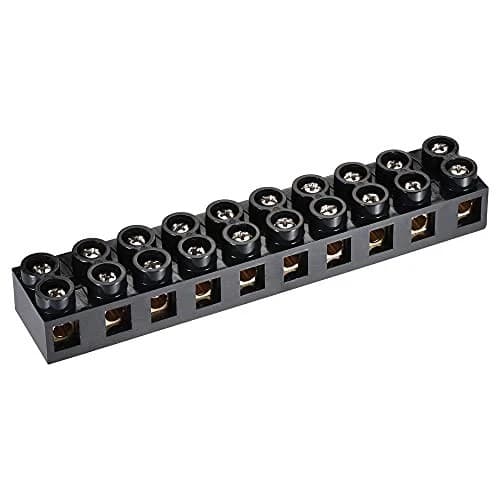

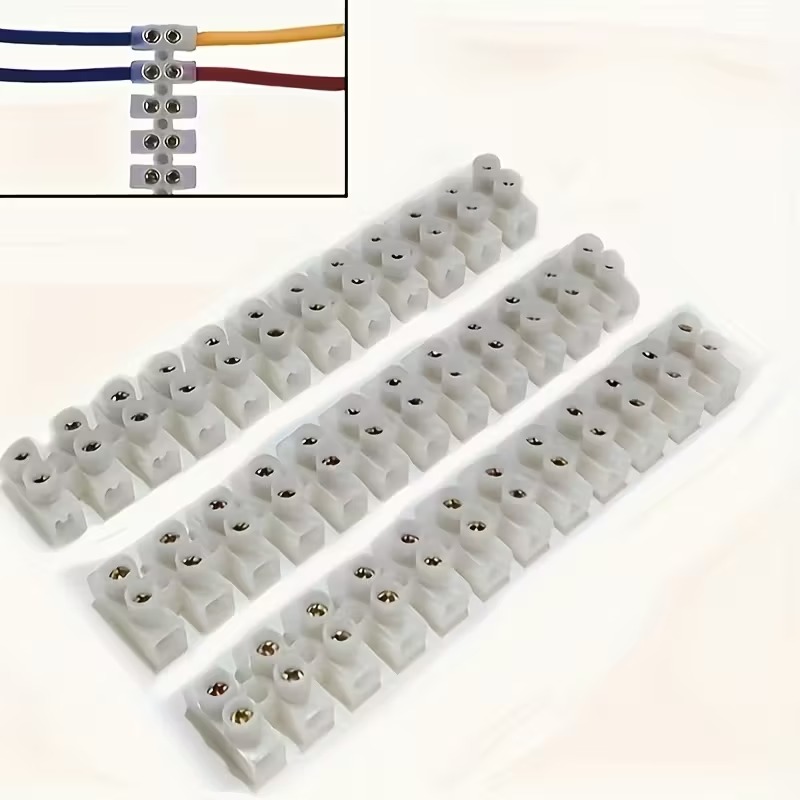

500V 60A Terminal Block 12-Bit

The X3-60A 12bit Terminal Block is a high-current connector designed to facilitate the secure and reliable connection of multiple wires in electrical circuits. This terminal block supports up to 60A current and is suitable for various high-power applications, including industrial machinery, power distribution, and automotive systems. Key Features:

• High current capacity: Supports up to 60A
• 12-bit terminal configuration
• Secure and reliable connections
• Easy wire insertion and release mechanism
• Durable construction for long-term use
• Suitable for high-power applications

Technical Specifications:

• Current Rating: Up to 60A
• Voltage Rating: Typically up to 600V (check specific model datasheet)
• Number of Terminals: 12
• Wire Size: Accepts a range of wire gauges (commonly 10 AWG to 22 AWG)
• Terminal Type: Screw or spring clamp (varies by model)
• Material: High-quality insulating material (e.g., polyamide or similar)
• Mounting: DIN rail or panel mount
• Operating Temperature Range: -40°C to +105°C

Applications:

• Industrial machinery
• Power distribution systems
• Automotive electrical systems
• Renewable energy systems (e.g., solar panels)
• Electrical control panels
• Heavy-duty appliances

Usage:

• Mounting: Secure the terminal block to a DIN rail or panel, ensuring it is properly aligned and fixed.
• Wire Preparation: Strip the insulation from the wire ends to expose the conductive material (length as specified by the terminal block model).
• Wire Insertion: Insert the stripped wire ends into the terminal block openings.
• Secure Connection: Tighten the screws or engage the spring clamps to secure the wires in place.
• Verification: Ensure all connections are tight and secure to prevent loose wires and potential short circuits.
• Inspection: Regularly inspect connections for signs of wear or damage, and re-tighten if necessary.

Caution:

• Ensure the terminal block is rated for the specific current and voltage of your application.
• Follow proper safety procedures when working with high-current electrical systems.
• Verify all connections are secure to prevent electrical faults.
• Regularly inspect the terminal block for any signs of wear or damage.
