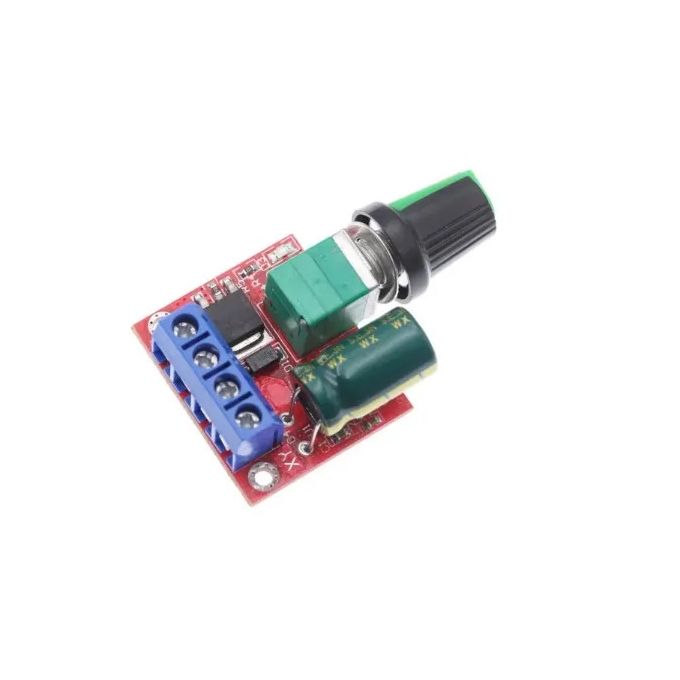

5V-35V PWM DC Motor Speed Controller

5V-35V PWM DC Motor Speed Controller Module is a Mini Style DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). This allows controlling the speed of a motor with fully adjustable 0%-100%.The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load.

Features:

• Mini DC 3-35V 5A PWM Motor Speed Controller. Wide voltage DC motor speed controller, PWM duty cycle: 1% -100%.

• Mini Style DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).

• Default disconnection of short circuit point, suitable for 5-35V input.

• Manually connect the short circuit point according your needs, suitable for low power 3-15v input.

• By screwing the potentiometer, you can turn off power supply output. High voltage and high current resettable fuse, overcurrent automatic disconnection, power off for cooling for a few seconds fuses automatic recovery.

Specifications:

• Operating voltage: DC4.5V-35V

• Output current: 0-5A

• Output power: 90W (max)

• Quiescent current: 7uA (standby)

• PWM duty cycle: 1% -100%

• PWM frequency: 20khz

• Size: 30mm x 26mm x 14mm (Without Handle)

Precautions:

• DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn!

• DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.

• The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.

• Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.

• Size: 30mm x 26mm x 14mm (Without Handle)

Package Includes:

• 1 x 5V-35V PWM DC Motor Speed Controller Module
