The 1N4148 is a high-speed switching diode commonly used in various electronic circuits for its fast response time and reliability. It is widely utilized in applications requiring high-speed switching, such as signal processing, digital circuits, and communication devices. The 1N4148 diode is known for its low forward voltage drop and high reverse voltage capability. Key Features:
High-speed switching
Low forward voltage drop
High reverse voltage capability
Reliable and durable
Low leakage current
Technical Specifications:
Max Forward Current (If): 150mA
Max Reverse Voltage (Vr): 100V
Forward Voltage (Vf): 1V @ 10mA
Reverse Recovery Time (trr): 4ns
Max Power Dissipation (Pd): 500mW
Junction Temperature Range: -65°C to +200°C
Package Type: DO-35
Applications:
High-speed switching circuits
Signal processing
Digital circuits
Communication devices
Pulse and waveform shaping circuits
Clamping and protection circuits
Usage:
Connect the anode (A) to the positive side of the circuit and the cathode (K) to the negative side.
Ensure the current and voltage ratings are within the specified limits to avoid damage.
Use appropriate heat sinking or cooling if the diode is operating near its maximum power dissipation.
Caution:
Avoid exceeding the maximum current and voltage ratings.
Ensure proper polarity to prevent reverse breakdown.
Handle with care to avoid physical damage to the diode leads.

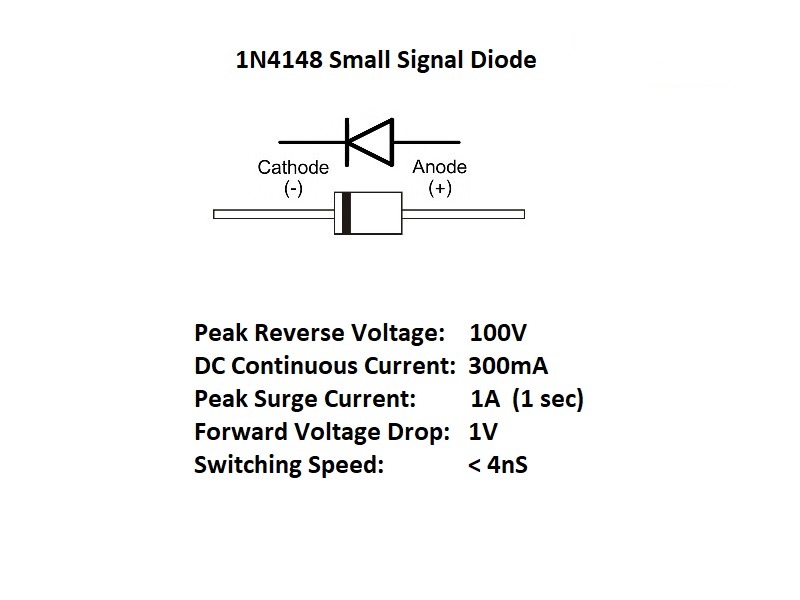

Datasheet: For detailed technical specifications, refer to the 1N4148 Datasheet.
